~ 2-Wire Audio Intercom System (DT595A)
The door station is an audio door station without camera, which is designed for DT 2-wire system. The front panel is made of zinc alloy for better protection against vandalism and cauterization, and the call button is also made of zinc alloy with blue backlight for auxiliary illumination, the unlock and talking LED indicator guarantee the door station works efficiently. With the rainy cover, the door station can be protected against water.
Specifications:
- Power Supply: DC 24V
- Power Consumption: Standby 60mA; Working Status 200mA
- Lock Power Supply:12Vdc, 300mA (internal power)
- Working Temperature:-10°C~ +45°C
- Wiring: 2 wires, non-polarity
- Dimension:137(H)x49(W)x28(D)mm
Included:
- 2-Wire System Power Comb
- 2-Wire Audio Intercom System
- 2-Wire System Indoor Audio Phone
- USER MANUAL

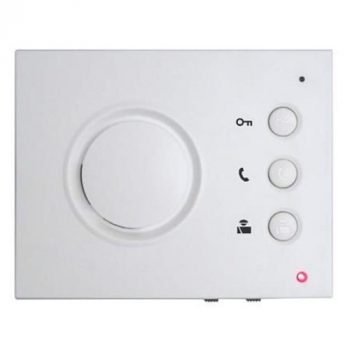

~ Wire System Indoor Audio Phone (DJ5A)
Features:
- DIP address setting
- Max.128 DIP addresses;
- Inner call Intercom;
- Two locks control;
- 4 ringtones choice;
- Suitable for villa and apartment system.
Specification:
- Power Supply: DC 24V
- Power Consumption: Standby 16mA; Working Status 56mA
- Working Temperature:-15°C~ +55°C
- Wiring:2 wires, non-polarity
- Dimension:88(H)x110(W)x20(D)mm
